EXP3_Final Submission

SUBMISSION LINKS






Sketchup model in 3D Warehouse (ARCH1101_EXP3_BRIDGE_YAPING KE)/
Images capturing of model(show allocation of rooms)




Process working (diagram exercise)


EXP3_Cryengine Environment

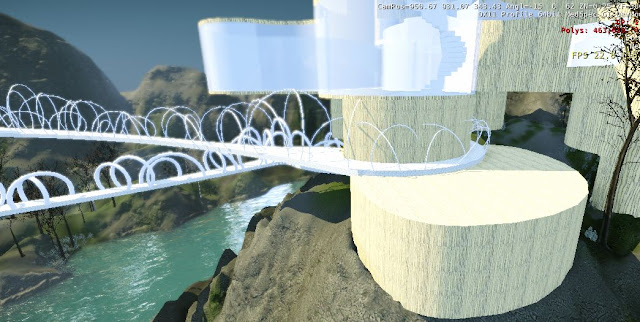

Aerial view of the whole environment shows the allocation of whole building and bridge. Bridge in between integral with two parts of building and combines the circulation spaces of buildings  which are designed with consideration of free movement as ' a building in the form of bridge'.












The valley separates the architecture school into two major part: 'students' and 'stuff' with concerns of different academic levels in relating to the physical levels.





The building at the bottom consists two studio rooms and two workshops: for different levels of students, a combined computer room and the last meeting room of students. As the building is mostly designed for student, who are encouraged to imagine freely, the full glazing without visual boundaries contributes to the idea.





 The gallery is regarded an significant part of architecture school as the place of displaying the outcome of works that require large space and visual continuity from outside for glimpse of art works. Centered location and full glazing allow view for any sides.





The irregular combination of geometries with curved surface is created to generate the idea of freedom without rigidity which is also the centre theory of the architecture school.




MORE DETAILS......























EXP3_models

Images of models and allocation analysis
The whole architecture school consists of two parts: main building and student building.



Front side



Back side







Allocation Analysis
  1. Student spaces seperated from staff spaces
  2. lecture, library,gallery--should be between student and staff
  3. Gallery at the centre part of building--most obvious location, others surrounding the gallery
  4. Interrelationship of staff rooms:(research for academic staff)-->(office of academic staff)-->(meeting room for staff)-->(office of general staff)
  5. Physical level follow level of class(e.g. studio 1 for senior students is higher)



lecture theatre

glazing of gallery






research room interior




left: office of academic staff
right bottom:
meeting room of staff




library

Office 1 for general staffOffice 2 for general staff







FOLLY


The folly is designed with the concerns of location where elevators stop, each cantilever support different elevators.



perspective drawing:





ELEVATORS

FOR DEAN

Each ring has its movement, when elevator stop moving, all rings form a plane.





  FOR STUDENTS




EXP3_movie

EXP3_mush up


Article Mashup

The architects didn’t alter the building’s exterior, but radically changed the interior by introducing a courtyard “garden room” that brings light into the middle of the floor plate and a green landscape into the center of the office. A 15-acre site on the Hudson River, ARO succeeded in creating a storm-resistant structure (it survived Hurricane Sandy) that is also light on the landscape. More than 2,000 marble sculptures were restored, and unsympathetic alterations made over the years to bronze windows, grilles, and doors were undone.  The result is a radical reinterpretation of what many considered a throw-away building. Sixty-five solar panels on the corrugated steel roof help offset electrical use from a nearby education center. Secure storage for up to 64 kayaks or canoes, a changing room, and a secondary storage area are enclosed by aluminum-bar grating panels. There is a high level of professionalism from everyone that worked on this project; everyone was a strong player, from the craftsmen to the design team. This project shows the potential for the reuse of the growing catalog of mid- and late-20th-century low-rise buildings throughout the country, and demonstrates how an interior transformation can be a more sustainable approach than demolition and new construction. With its simple wooden deck, the structure reads as elegant, and doesn’t interrupt the scenic views of the river and Highlands. The most successful aspect of the project is the one that is most obvious to the eye: This brilliant Beaux-Arts masterpiece by Carrere and Hastings looks as gorgeous now as it did when it was completed in 1911. It’s a more joyful, open, airy, and bright space, and the way we all interact is completely different. This remarkable kayak pavilion … celebrates simplicity, craft, resilience, and advanced resource-efficiency.  A century of grime, wear and tear, and poor restoration work has been swept away by the great work of our architects and by all the craftsmen and women who labored with such devotion on the project.

Article 1: Lamar Advertising Corporate Headquarters

Article 2: Boat Pavilion for Long Dock Park

Article 3: The New York Public Library





EXP3_Draft Submission

Draft Environment
Draft 1



Draft 2







MARKING SHEETS FOR OTHERS



EXP3_PROCESS WORKING



Valley



Wuyi Mountain, Fujian, China






 As the Yarlung Tsangpo Grand Canyon choosed before is mostly famouse for it's deapth but not suitable for my design and it is not as distinctive as the Wuyi Mountain in Fujian.
